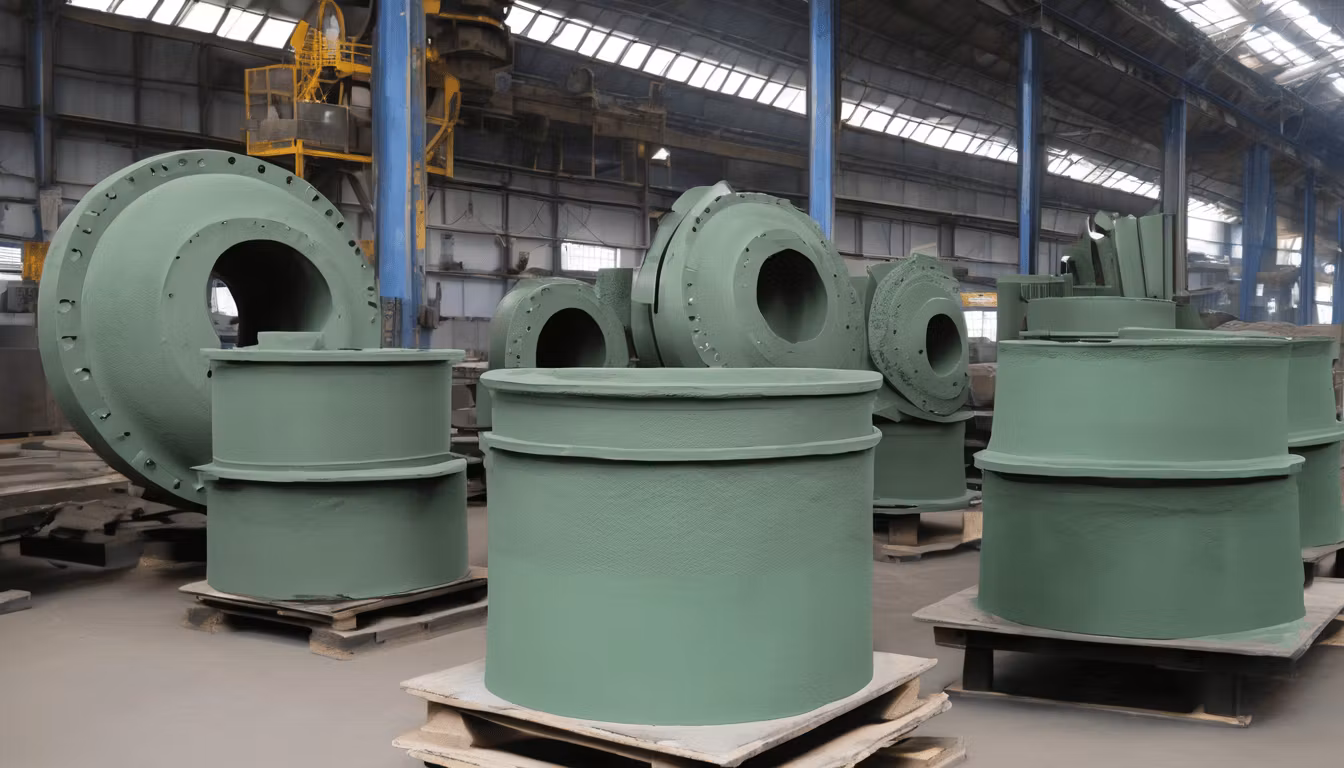

Zircon Sand in Foundry Applications: Green Sand and Shell Mold Casting

The foundry industry demands materials that can withstand extreme temperatures, thermal shock, and chemical reactions during metal casting. Among specialized foundry sands, zircon sand has emerged as a premium refractory material that significantly improves casting quality, surface finish, and production efficiency. Whether you're casting aluminum, steel, or specialized alloys, understanding zircon sand's role in green sand and shell mold applications is essential for competitive foundry operations.

What is Zircon Sand and Why It Matters in Foundry Operations

Zircon sand, scientifically known as zirconium silicate (ZrSiO₄), is an advanced refractory material extracted from mineral deposits across Indonesia's richest mining regions. Our premium-grade zircon sand contains 65%+ ZrO₂ content, delivering superior thermal properties and dimensional stability crucial for foundry applications.

Unlike conventional silica sand, zircon sand offers several distinct advantages:

• Exceptional Refractory Properties: Maintains structural integrity at temperatures exceeding 1,700°C, preventing sand grain degradation during casting cycles
• Low Thermal Expansion: Minimizes mold distortion and reduces casting defects caused by thermal stress
• High Density and Strength: Provides better mold strength and dimensional accuracy, especially critical for precision castings
• Superior Surface Quality: Produces smoother casting surfaces with fewer inclusions and defects
• Chemical Inertness: Resists interaction with molten metal, reducing veining, scabbing, and penetration defects

These properties make zircon foundry sand the material of choice for demanding applications requiring tight tolerances and superior surface finishes. Foundries working with aluminum alloys, ductile iron, and specialty steel castings particularly benefit from zircon's performance advantages.

Zircon Sand in Green Sand Molding

Understanding Green Sand Applications

Green sand molding represents the most widely used casting technique in foundries worldwide. Unlike chemically bonded systems, green sand relies on moisture and clay content to develop mold strength, offering cost efficiency and flexibility. However, high-temperature metal casting subjects the mold to severe thermal cycling, where material selection becomes critical.

Zircon sand fundamentally transforms green sand mold performance by serving as a strategic replacement for conventional silica sand in critical areas of the mold system:

Key Applications in Green Sand Systems

Facing Sand Layer: The critical interface between molten metal and the mold requires maximum protection. Zircon sand's exceptional refractory properties and thermal shock resistance make it ideal for facing layers in high-temperature castings. This strategic placement prevents metal penetration into the mold while maintaining dimensional accuracy.

Parting Lines and Cope Areas: Regions experiencing maximum thermal stress benefit significantly from zircon's low thermal expansion characteristics. By incorporating zircon sand in these zones, foundries achieve tighter dimensional tolerances and reduced scrap rates from thermal distortion.

Chills and Refractory Components: When embedded in molds to control cooling rates, zircon sand maintains its structural integrity better than conventional sands, ensuring consistent cooling patterns and reducing micro-porosity in critical sections.

Performance Benefits in Green Sand Operations

Foundries implementing zircon sand in green sand systems typically achieve:

• Reduced casting defects by 15-25% through improved dimensional stability
• Extended mold reusability cycles due to superior thermal durability
• Improved surface finish quality (Ra values), reducing finishing labor costs
• Lower scrap rates from thermal-induced defects and metal penetration
• Better performance in high-speed molding machines with demanding thermal cycles

Zircon Sand in Shell Mold Casting

Shell Mold Technology and Material Requirements

Shell molding represents the precision casting segment where material excellence directly translates to competitive advantage. This process combines phenolic resin binders with specially graded foundry sand to create thin-walled, high-strength molds capable of producing complex components with exceptional dimensional accuracy.

The demanding nature of shell molding—requiring materials that bond effectively with resin systems while maintaining refractory properties—makes sand selection particularly critical. Zircon sand's unique mineral composition and grain characteristics align perfectly with shell mold technology requirements.

Why Zircon Excels in Shell Mold Applications

Superior Grain Surface Characteristics: Zircon sand's crystalline structure and natural surface properties promote excellent adhesion with phenolic and furan resin binders, resulting in stronger shell structures and improved mold integrity during casting.

Thermal Conductivity Benefits: Shell molds require controlled heat transfer during casting to manage cooling rates and prevent thermal defects. Zircon's superior thermal properties enable more precise temperature management within the mold cavity, resulting in castings with improved metallurgical quality.

Dimensional Precision: The chemical inertness of zircon sand prevents reactions with molten metal that can cause surface defects. This inertness is particularly valuable in shell molding, where tight dimensional tolerances are essential for applications like automotive components, aerospace parts, and precision machinery.

Reusability and Cost Efficiency: While shell mold sand typically achieves lower reclamation rates than green sand, zircon's durability extends the viable life of shell molding sand. The reduced degradation means fewer batch replacements and better cost control over extended production campaigns.

Typical Shell Mold Zircon Applications

Industries leveraging zircon sand shell mold technology include:

• Automotive Casting: Engine blocks, transmission components, and structural brackets requiring dimensional accuracy and reduced defect rates
• Aerospace Components: Complex parts where surface finish and internal quality directly impact component reliability
• Pump and Valve Bodies: Fluid handling components where dimensional accuracy affects sealing and performance
• Hydraulic Systems: Precision-cast components for industrial hydraulics and mobile equipment
• Medical Device Components: Specialized surgical and diagnostic equipment requiring biocompatible materials and precise dimensions

Technical Specifications and Performance Metrics

When evaluating zircon sand for foundry applications, specific technical properties determine performance outcomes. Our zircon sand meets international quality standards with:

• ZrO₂ Content: 65%+ ensuring superior refractory performance
• SiO₂ Content: Balanced composition for optimal grain binding and mold strength
• Grain Size Distribution: Multiple mesh grades available (typically 200, 150, 100, 80 mesh) for both green sand facing and shell mold systems
• Bulk Density: 2.4-2.6 g/cm³, providing excellent mold packing and dimensional control
• Refractoriness: Cone equivalent >1700°C, handling extreme casting temperatures reliably
• Thermal Expansion: Minimal and consistent across temperature cycles, critical for dimensional stability

All materials undergo rigorous testing through SUCOFINDO laboratory analysis, ensuring consistency and reliability for your foundry operations. Documentation of each batch provides complete traceability from source through delivery.

Sourcing and Supply Considerations for Foundries

Successful foundry operations depend on reliable material supply with consistent quality. The distinction between direct mine sourcing and middleman purchases significantly impacts both cost and reliability.

As a direct-from-mine supplier, CV Indoalam Mineral Persada sources zircon sand from premier deposits across Sulawesi, Kalimantan, and Maluku regions, providing several advantages:

• Supply Consistency: Direct control over extraction and processing ensures batch-to-batch consistency crucial for standardized foundry processes
• Quality Assurance: SUCOFINDO testing on every significant batch documents material properties and identifies any variations before delivery
• Flexible Scaling: From trial quantities of 100 metric tons for testing new applications through multi-year contracts delivering millions of metric tons annually, we adapt to your production requirements
• Regulatory Compliance: Full IUP OPK licensing, RKAB approval, and export documentation ensure all materials meet Indonesian and international regulations
• Competitive Pricing: Eliminating middlemen reduces costs while maintaining superior quality standards

Comparative Analysis: Zircon Versus Alternative Foundry Sands

While silica sand remains the industry standard for cost-conscious applications, zircon sand's performance premium justifies its higher material cost in demanding applications. Consider this comparison:

Conventional Silica Sand: Cost-effective for high-volume production where dimensional tolerance and surface finish requirements are moderate. Limited thermal shock resistance and higher expansion characteristics can result in casting defects in challenging applications.

Chromite Sand: Effective in steel foundries for its thermal stability, but generally unavailable from consistent sources and more expensive than zircon. Handling requires special safety precautions due to chromium content.

Olivine Sand: Good thermal properties but inferior to zircon in dimensional stability and surface quality applications. Better suited for heavy casting applications prioritizing cost over precision.

Zircon Sand: Premium performance across all critical foundry metrics—exceptional refractory properties, minimal thermal expansion, superior surface quality, and excellent durability. Best choice for precision castings and demanding applications where defect rates directly impact profitability.

Implementation Best Practices for Foundry Operations

Transitioning to Zircon in Existing Operations

Foundries implementing zircon sand for the first time should consider:

• Pilot Program Development: Begin with zircon facing sand in green sand systems on non-critical components to validate process compatibility and train personnel on handling differences
• Resin System Compatibility: In shell molding, verify that phenolic resin binders work optimally with zircon sand batches through preliminary testing
• Grain Size Selection: Choose mesh grades matching your existing molding machines and process parameters for seamless integration
• Personnel Training: Brief foundry teams on zircon's different handling characteristics compared to conventional sands, particularly regarding moisture retention and thermal behavior

Quality Control and Ongoing Monitoring

Maximize zircon sand benefits through consistent quality management:

• Establish baseline measurements for critical casting parameters before implementation
• Monitor defect rates, scrap costs, and finishing labor consumption during the transition period
• Maintain traceability records linking material batches to casting results for optimization insights
• Coordinate with your zircon sand supplier to adjust specifications based on performance data

Future Trends and Sustainability in Foundry Materials

The foundry industry faces increasing pressure to improve sustainability while maintaining casting quality. Zircon sand supports these objectives through:

• Extended Mold Life: Superior durability reduces replacement frequency, lowering overall material consumption and waste generation
• Defect Reduction: Superior casting quality means fewer scrap pieces and rework operations, reducing energy consumption per finished component
• Efficient Resource Use: Strategic placement of zircon (rather than replacing all sand) optimizes material usage and cost
• Responsible Sourcing: Indonesian zircon sources adhere to IUP OPK standards and RKAB approval processes ensuring environmentally responsible extraction

Why Partner with CV Indoalam Mineral Persada

Selecting the right zircon sand supplier impacts both your immediate casting quality and long-term operational economics. CV Indoalam Mineral Persada distinguishes itself through:

• Direct Mine Access: We source directly from premium deposits in Indonesia's richest mineral regions, eliminating middlemen and ensuring supply reliability
• Complete Regulatory Compliance: IUP OPK licensing, RKAB approval, and SUCOFINDO testing provide documented assurance of product quality and material traceability
• Flexible Supply Models: Whether you need 100 metric tons for pilot testing or 2.5 million metric tons annually, we scale to match your production requirements
• Technical Partnership: Beyond material supply, we work with your foundry team to optimize zircon implementation and troubleshoot application challenges
• Proven Track Record: Established partnerships with major foundries, aluminum smelters, and industrial producers across Indonesia demonstrate our reliability and material quality

Our expertise extends across multiple mineral products including silica sand and aluminium ingot, allowing us to serve as your comprehensive industrial minerals partner.

Taking the Next Step with Zircon Foundry Sand

The competitive advantage of superior casting quality, reduced defect rates, and improved operational efficiency makes zircon sand investment compelling for precision foundries. Whether you're optimizing green sand systems or implementing advanced shell mold technology, zircon sand delivers measurable performance improvements.

Contact CV Indoalam Mineral Persada today to discuss your specific foundry requirements, request samples for testing, or arrange a facility visit to understand how zircon sand can enhance your casting operations. Our technical team stands ready to support your transition to premium foundry materials and help you achieve superior results in every casting cycle.

With direct access to premium zircon deposits, complete quality documentation, and flexible supply arrangements, CV Indoalam Mineral Persada is your trusted partner for foundry sand excellence in Indonesia and internationally.
